Programmable Logic Controller – initial sources release

Finally, here are the sources I was talking about for so long! This project page wouldn’t be complete without it, would it?

The zip file below contains complete sources of AVR firmware in Arduino language (C++ with a couple of libraries, basically), the graphical development environment, a sample control program with corresponding configuration, a simple PC SCADA application and a simple communication library in Java.

plc-project-061010.zip

Schematics and other info can be found here (just search in the document, you’ll find it at the end).

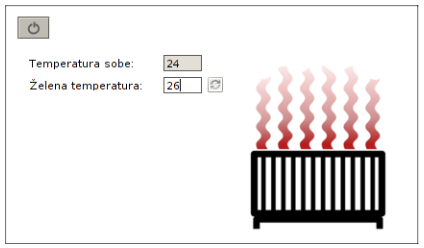

It looks like that:



Graphical integrated development environment





Initial prototype of the controller



Do read more about it here.
